n95 fully automatic folding mask all-in-one machine

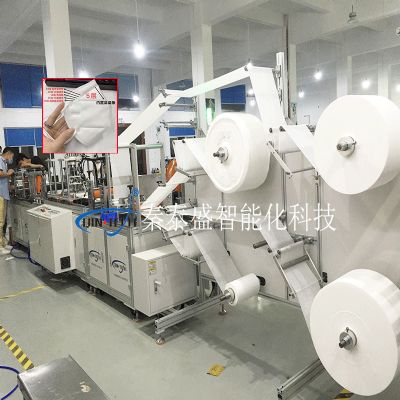

1. Equipment process flow N95 fully automatic folding mask machine is a fully automatic machine used for the production of folding mask production lines. It uses ultrasonic technology to weld 3 to 6 layers of PP non-woven fabrics, activated carbon filter materials, filter materials and other components. The entire set of equipment has integrated fully automatic folding production processes such as non-woven fabric welding, ear strap welding, printing, folding, edge sealing, and rolling cutting, and can process 3M 9001, 9002, etc. and other folding masks. The raw materials selected according to product requirements can produce masks that meet different standards such as FFP1, FFP2, N95, etc. The entire production process does not require the participation of talents, and the finished product is fully automatically produced. Automatic unwinding - nose bridge strip feeding - ultrasonic welding - LOGO pad printing - ear strap welding - folding and forming - ultrasonic welding and cutting + finished product output 2. Equipment diagram 3. Equipment parameters 1. Adapt to product specification requirements: 1.1 Bond 3 to 6 layers of PP non-woven fabrics and activated carbon filter materials, and cut out the folded mask body. N95 disc masks are used for occupational respiratory protection, including certain microbial particles (such as viruses, bacteria, mold, Bacillus anthracis, Mycobacterium tuberculosis, etc.). 2. Basic configuration parameters of the equipment Power supply: AC220V 50HZ Air source: 0.5~0.8MPA Production efficiency: 40~50pcs/min Production yield: ≥95% Equipment size (mm): 9300 (L) * 1300 (W) * 1900 (H) 4. Equipment features 1. Automatic tension control of raw materials to ensure balanced raw material tension. 2. Photoelectric detection of raw materials to avoid mistakes and reduce waste. 3. Frequency conversion control, the operating speed of the equipment can be adjusted as needed. 4. High degree of automation, simple operation, only need to put materials and sort out finished products. 5. The entire machine adopts sheet metal + aluminum alloy structure, which is beautiful, strong and rust-free. 5. Equipment operation requirements 1. Manual, automatic and motion operation modes can be switched between each other, and fault alarms need to be displayed on the human-machine interface; 2. Industrial computers are used to realize real-time communication with PLC, and human-machine dialogue is realized through the touch screen. All setting operations must be simple and convenient; 3. The equipment complies with the national safety standards for electromechanical equipment; 6. Other requirements 1. Acceptance standards for this equipment: One week before the completion of equipment assembly and debugging, Party B shall be notified to prepare production materials, and acceptance shall be carried out according to technical requirements. If the acceptance is qualified, Party A will ship the goods; 2. Equipment inspection The technical personnel designated by both parties will participate and sign the acceptance report; 7. Installation, debugging and training, Party A’s technical personnel will remotely guide Party B’s personnel to install and debug without liability, and the debugging materials will be provided by Party B; 8. Quality assurance and after-sales service 1. The warranty period of the equipment is half a year ( Damage caused by abnormal use and consumables are excluded); 2. When receiving abnormal quality of the equipment, Party A and Party B shall resolve it through consultation; 3. After the warranty period expires, Party A will charge labor and transportation fees for the maintenance of the equipment. When it comes to the replacement or purchase of equipment-related accessories, Party A will only charge the cost. Reminder: Don’t rush to remit money or pay a deposit before seeing the real thing to avoid being cheated.
